A comprehensive analysis on the healthy and faulty two types VR-resolvers with eccentricity and inter-turn faults

Naderi, Peyman, Ghandehari, Reza and Heidary, Malihe ORCID: https://orcid.org/0000-0001-6249-1237 (2021) A comprehensive analysis on the healthy and faulty two types VR-resolvers with eccentricity and inter-turn faults. IEEE Transactions on Energy Conversion, 36 (4). pp. 3502-3511. ISSN 0885-8969

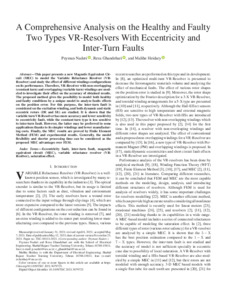

[thumbnail of A_Comprehensive_Analysis_on_the_Healthy_and_Faulty_Two_Types_VR-Resolvers_With_Eccentricity_and_Inter-Turn_Faults]
Preview
PDF (A_Comprehensive_Analysis_on_the_Healthy_and_Faulty_Two_Types_VR-Resolvers_With_Eccentricity_and_Inter-Turn_Faults) - Accepted Version
Download (8MB) | Preview

Abstract

This paper presents a new Magnetic Equivalent Circuit (MEC) to model the Variable Reluctance Resolver (VR-Resolver) and study the effect of different windings configurations on its performance. Therefore, VR-Resolver with non-overlapping (constant turn) and overlapping (variable turn) windings are modeled to investigate their effect on the accuracy of obtained results. The proposed method gives the possibility to model both healthy and faulty conditions by a unique model to analyze faults effects on the position error. For this purpose, the inter-turn fault is considered on the excitation winding, and both dynamic and static eccentric rotors (DE and SE) are studied. It is shown that the variable turn VR-Resolver has more accuracy and lower sensitivity to eccentricity fault, while the constant turn type is less sensitive to inter-turn fault. However, the latter may be preferred in some applications thanks to its simpler windings and lower manufacturing costs. Finally, the MEC results are proved by Finite Element Method (FEM) and experimental results. Generally, the model flexibility and shorter processing time can be considered as the proposed MEC advantages over FEM.

Item Type: Article
Uncontrolled Keywords: eccentricity fault,inter-turn fault,magnetic equivalent circuit (mec),saturation effect,variable reluctance resolver (vr-resilver),energy engineering and power technology,electrical and electronic engineering ,/dk/atira/pure/subjectarea/asjc/2100/2102
Faculty \ School: Faculty of Science > School of Engineering, Mathematics and Physics
UEA Research Groups: Faculty of Science > Research Groups > Sustainable Energy
Related URLs:
Depositing User: LivePure Connector
Date Deposited: 22 Oct 2024 09:30
Last Modified: 07 Nov 2024 12:48
URI: https://ueaeprints.uea.ac.uk/id/eprint/97090
DOI: 10.1109/TEC.2021.3079725
